400mm Bluetooth Ultrasonic Wall Thickness Gauge For metal glass and Plastic

  • 400mm Bluetooth Ultrasonic Wall Thickness Gauge For metal glass and Plastic
  • 400mm Bluetooth Ultrasonic Wall Thickness Gauge For metal glass and Plastic
  • 400mm Bluetooth Ultrasonic Wall Thickness Gauge For metal glass and Plastic
  • 400mm Bluetooth Ultrasonic Wall Thickness Gauge For metal glass and Plastic
  • 400mm Bluetooth Ultrasonic Wall Thickness Gauge For metal glass and Plastic
  • 400mm Bluetooth Ultrasonic Wall Thickness Gauge For metal glass and Plastic
  • 400mm Bluetooth Ultrasonic Wall Thickness Gauge For metal glass and Plastic
  • 400mm Bluetooth Ultrasonic Wall Thickness Gauge For metal glass and Plastic
  • 400mm Bluetooth Ultrasonic Wall Thickness Gauge For metal glass and Plastic
  • 400mm Bluetooth Ultrasonic Wall Thickness Gauge For metal glass and Plastic
起源の場所 北京
ブランド名 HUATEC
証明 ISO, CE, GOST
モデル番号 TG-3500
最小注文数量 1pcs
パッケージの詳細 標準輸出パッケージ
受渡し時間 1-4days
支払条件 T/T,PayPal,ウェスタンユニオン
供給の能力 月に500個

無料のサンプルとクーポンを私に連絡してください.

ワットスアップ:0086 18588475571

wechat: 0086 18588475571

スカイプ: sales10@aixton.com

24時間オンラインでサポートします

x
商品の詳細
範囲 0.75-400mm ディスプレイ 4桁の10mmLCD
運営原則 超音波 バッテリー表示 低い電池の徴候
音速 1000~9999 M/s 決議 0.1mm / 0.01mm / 0.001インチ
製品名 超音波厚さゲージ
ハイライト

digital ultrasonic thickness gauge

,

through coating thickness gauge
メッセージ
製品の説明

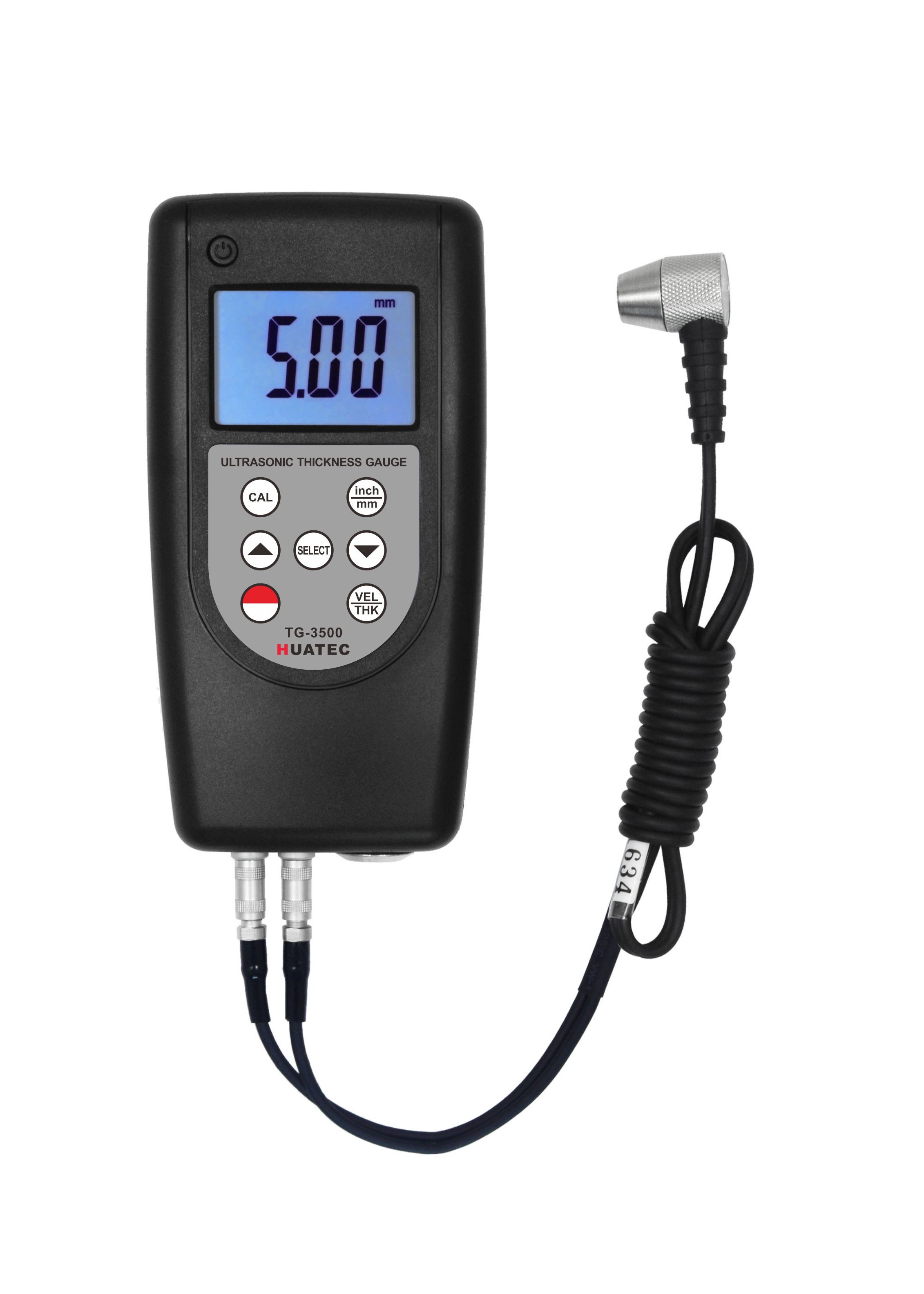

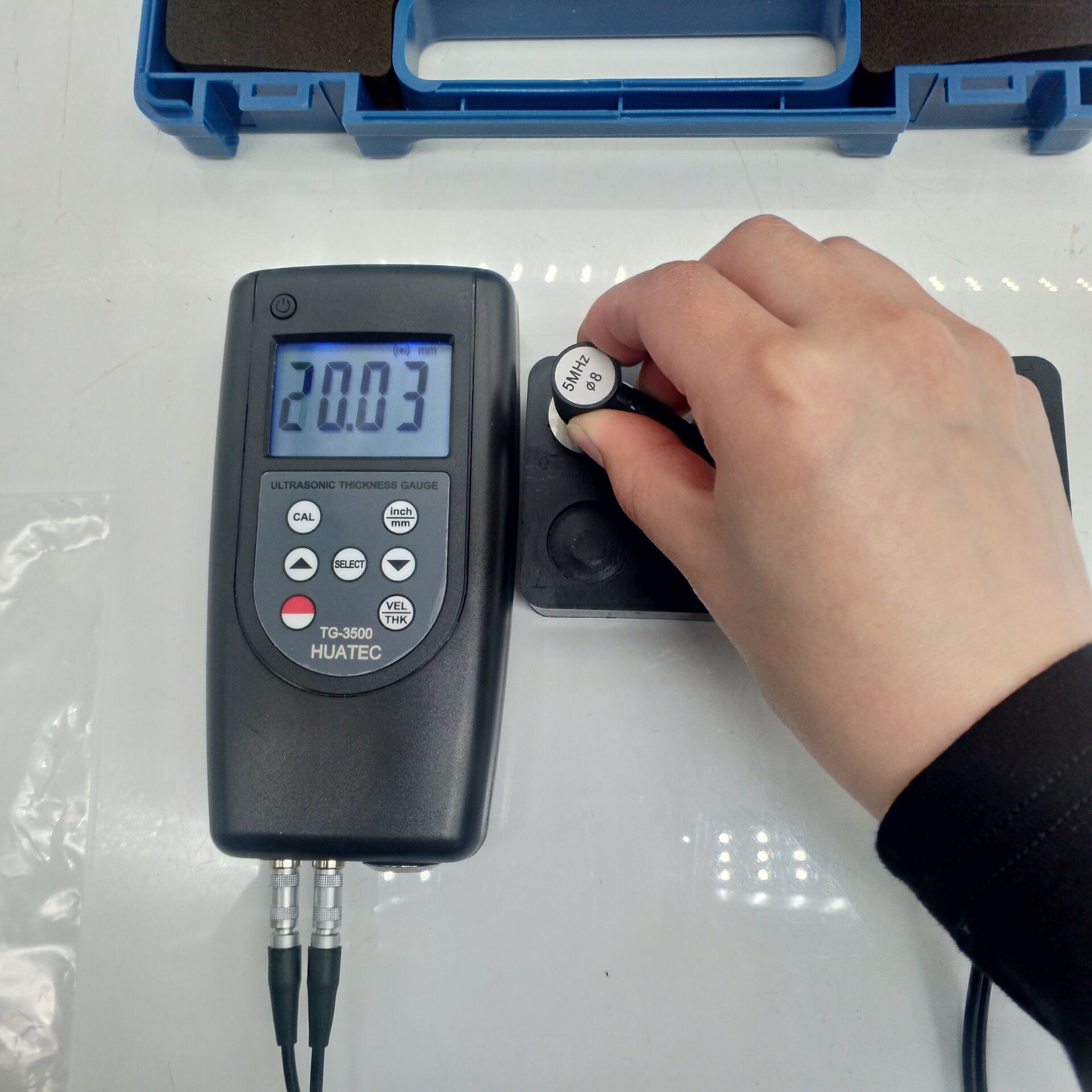

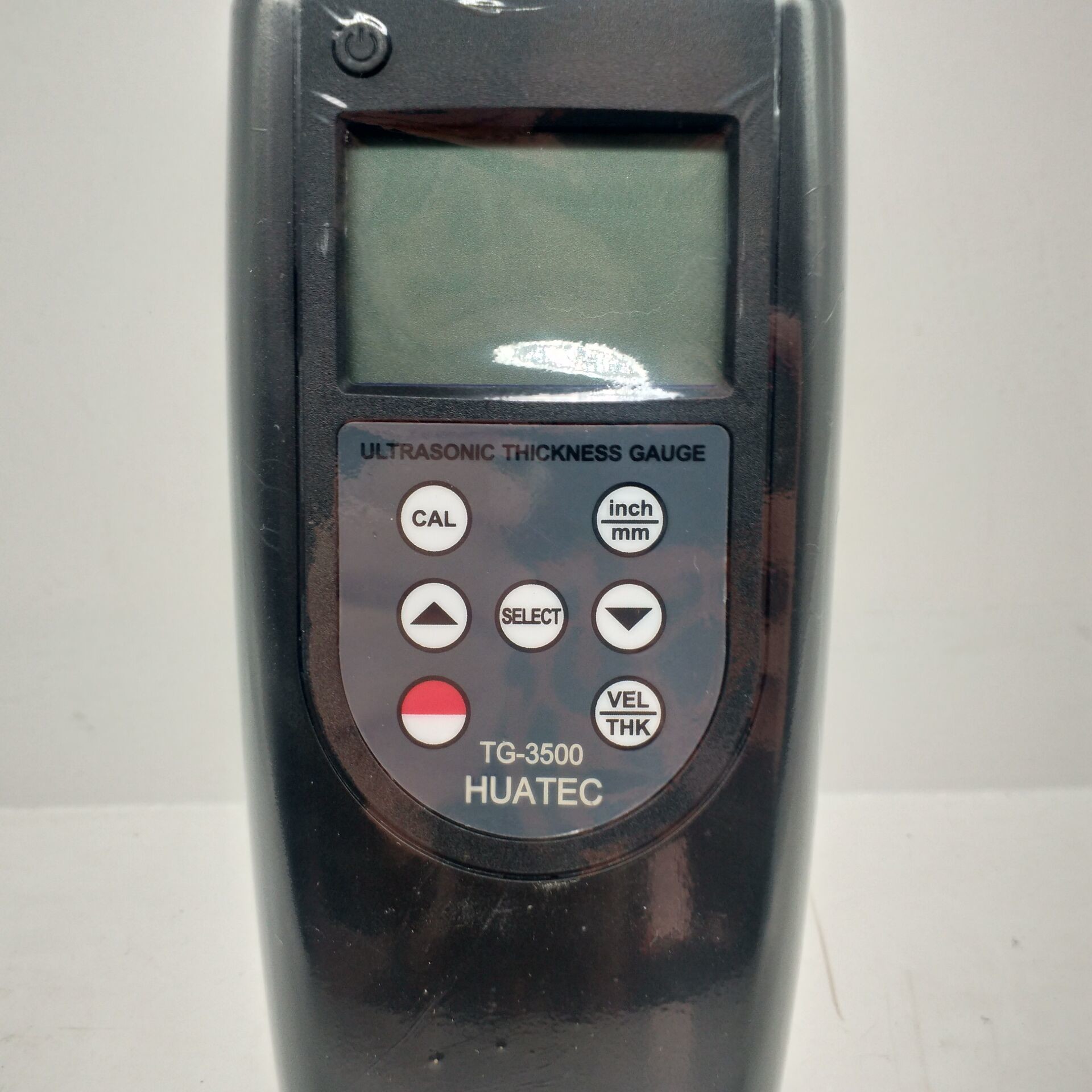

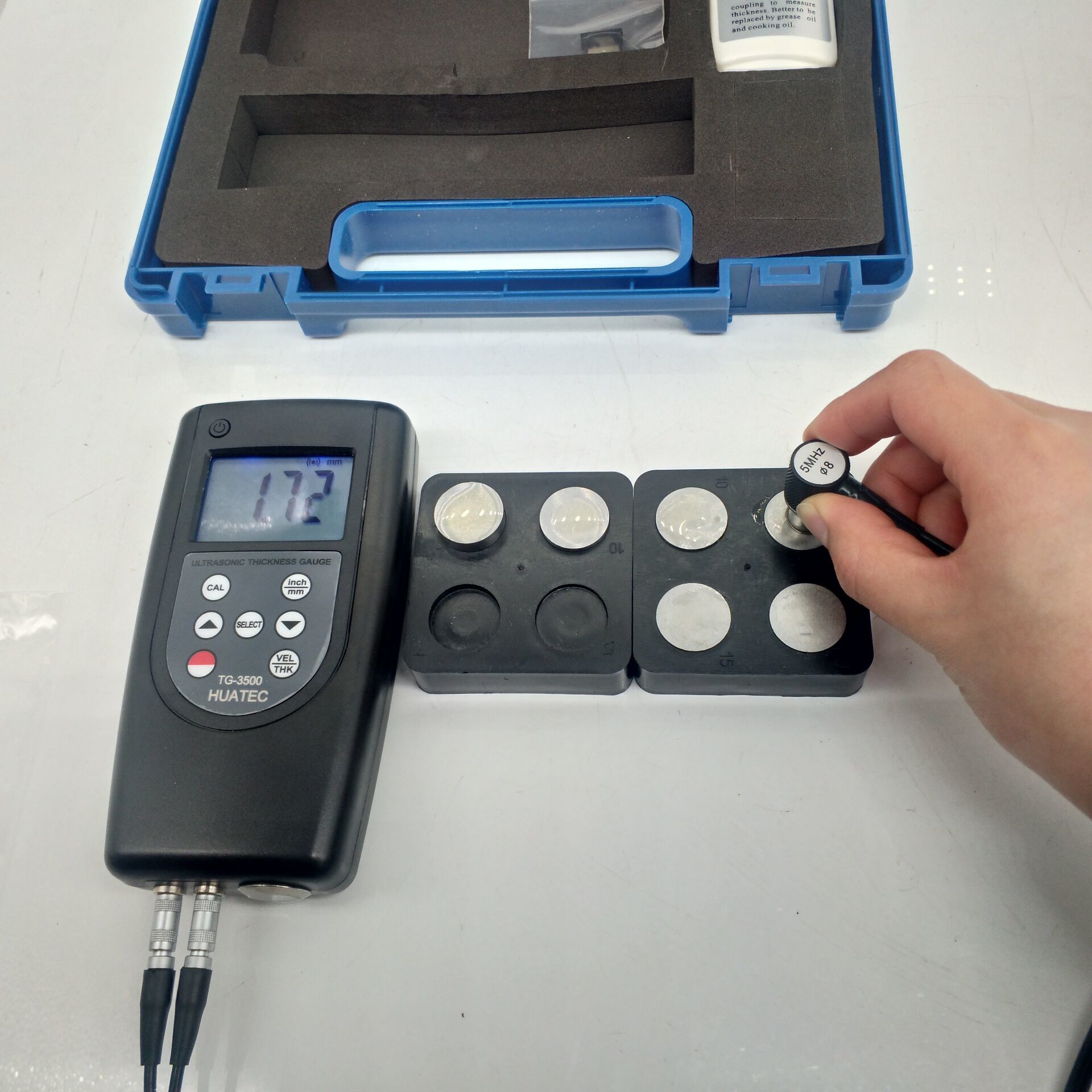

400mm Bluetooth Ultrasonic Wall Thickness Gauge For metal glass and Plastic



400mm Bluetooth Ultrasonic Wall Thickness Gauge For metal glass and Plastic 0Used for measuring thickness and corrosion of pressure vessels,chemical equipment, boilers,oil storage tanks,etc.in industries of petroleum, shipbuilding,power station,and machine manufacturing.







Features

* Using the latest high performance and low power consumption microprocessor technology.

* Automatic memory material code and sound velocity value, convenient to use.

* Use “USB data output” and “RS-232 data output” to connect with PC.

* Provide “Bluetooth ™ data output”



Specifications

  Display

  4 Digit, 10 mm LCD

  Operating Principle

  Ultrasonic

  Measuring Range (metric / Imperial)

  0.75~400mm (45# steel) (Depend on Probe)

  Battery Indication

  Low Battery Indication

  Sound Velocity

  1000~9999 m/s

  Lower Limit Steel Pipes

  Φ15 x 2.0 mm Φ20 x 3.0 mm determined by transducer

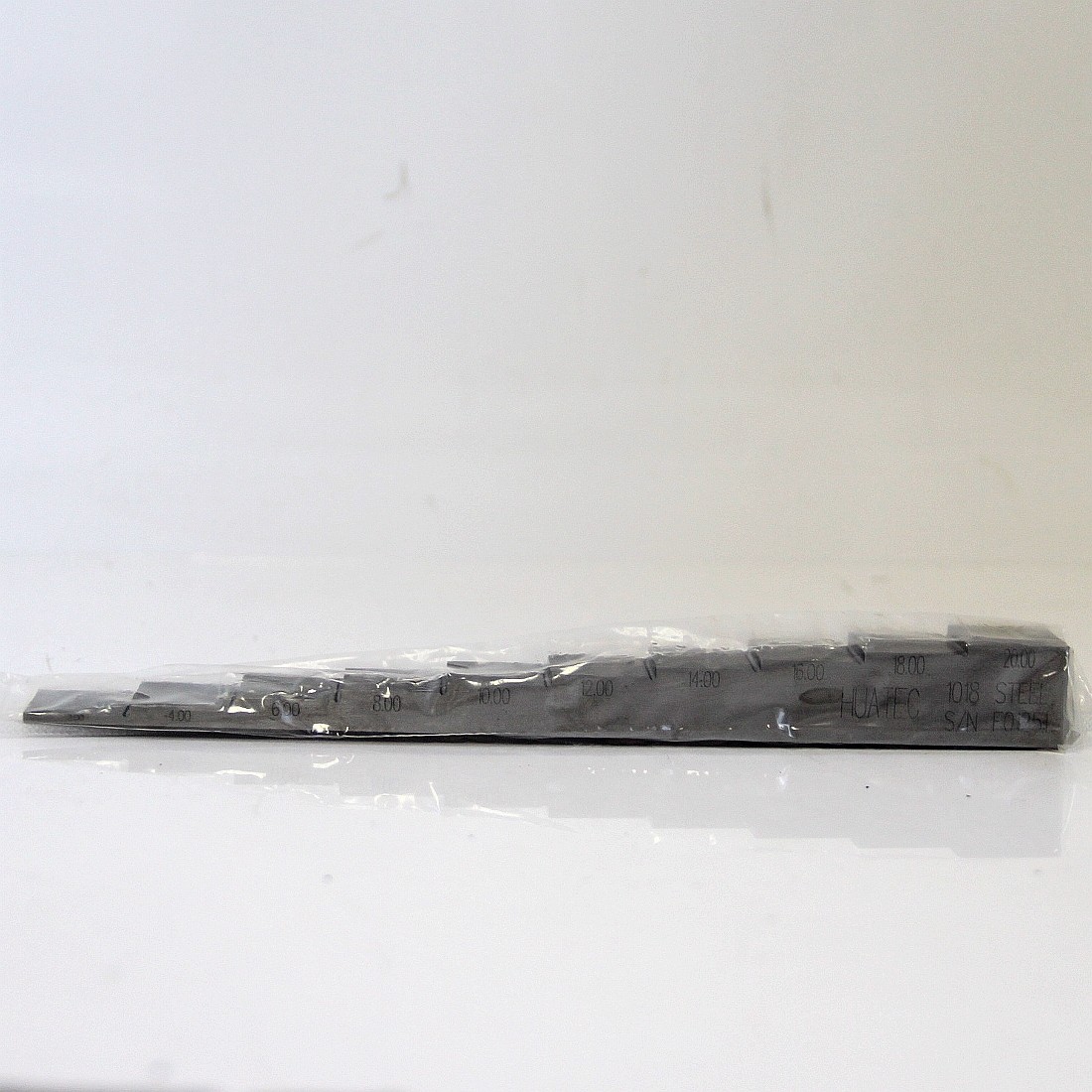

  Calibration Block

  Included

  Resolution

  0.1mm / 0.01mm / 0.001inch

  Accuracy

  ± (0.5%n + 0.1)

  Power off

  Auto Power off & Manual Power Off

  Operating  Conditions

  Temperature: 0~40 °C, Humidity: < 85 %RH

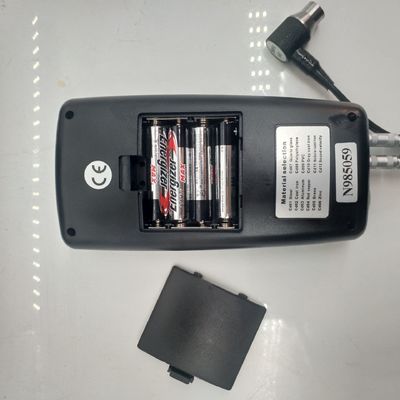

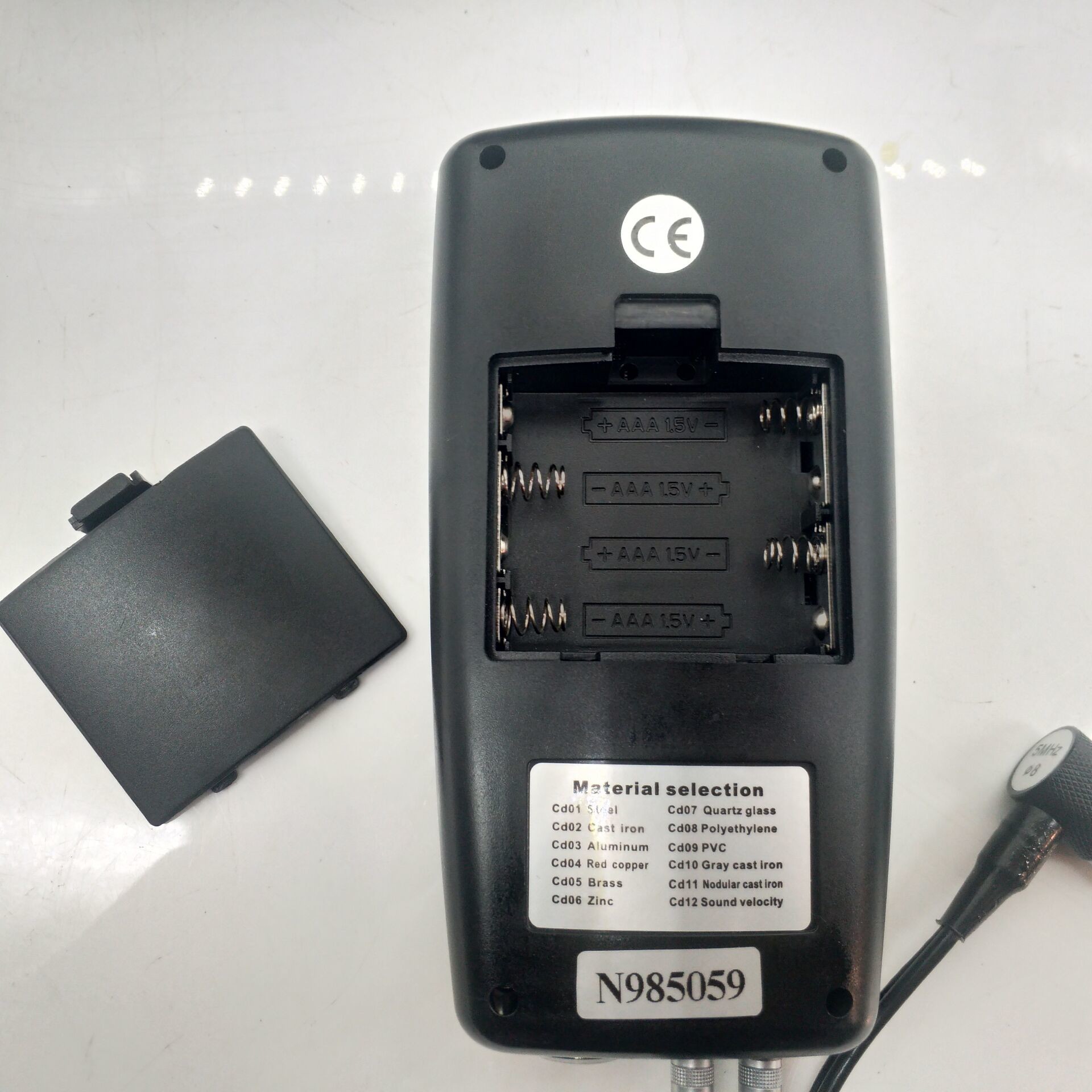

  Power Supply

  4 x 1.5 V AAA (UM-4) Battery

  Dimensions

  140 x 72 x 34 mm

  Weight

  185 g (Not Including Batteries)

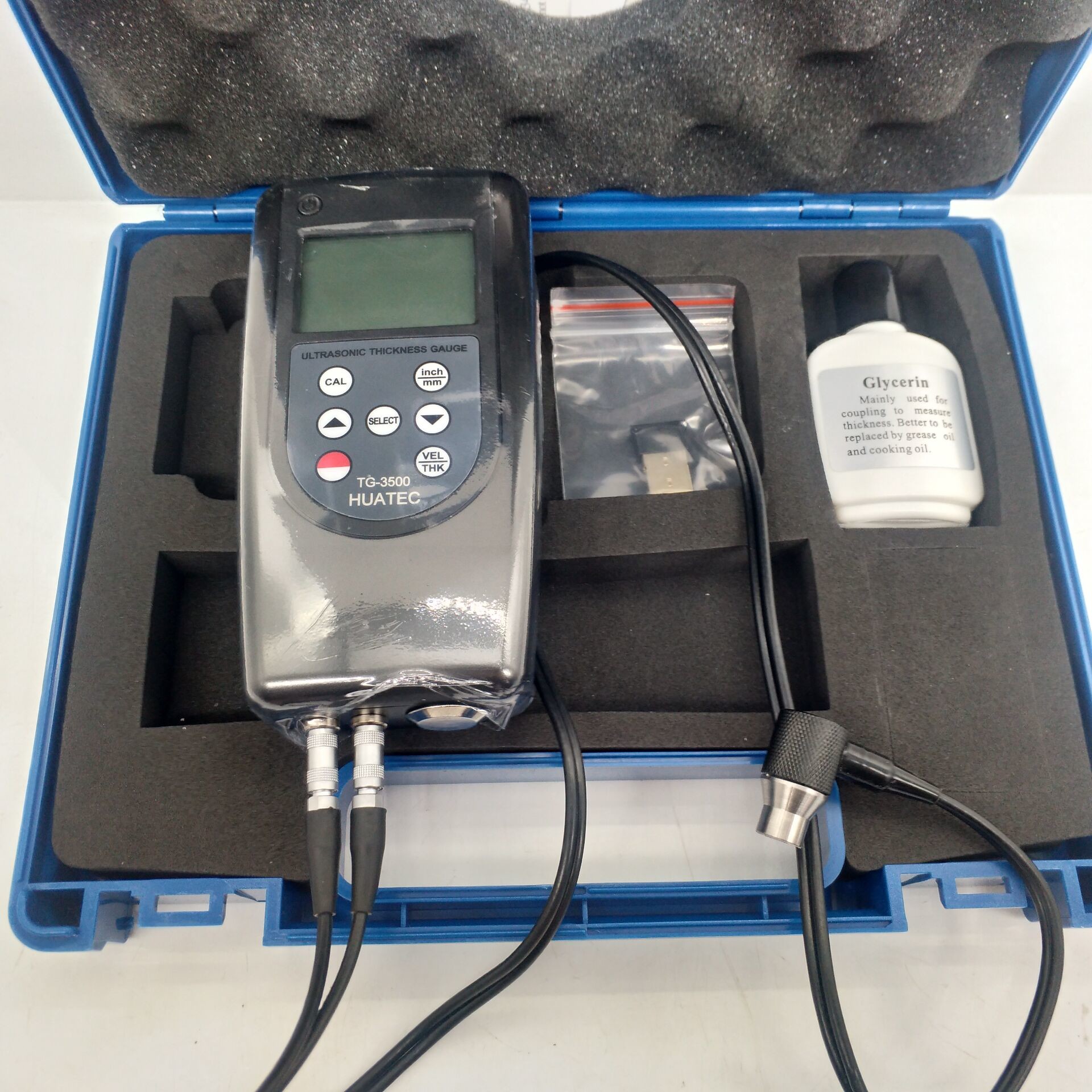

Standard Delivery:

 1. Main Unit

 2. 5MФ8 Standard Sensor

 3. Coupling Agent

 4. Carrying Case

 5. Operating Manual

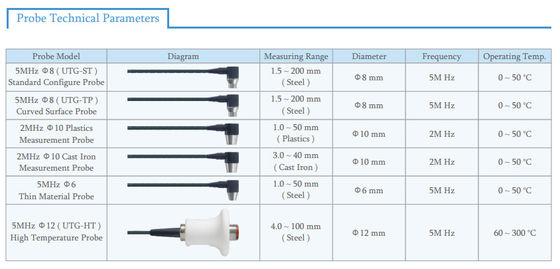

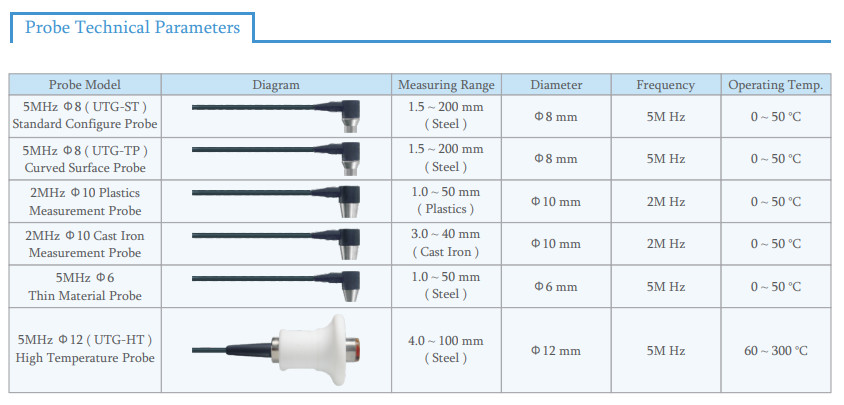

Optional Accessories:

 1. 6M Φ6 mm thin Material Probe : Measuring range (steel): 1.0~50.0 mm Operating temperature: -10~60°C

 2. 5M Φ12 mm High Temperature Probe: Measuring range (steel): 1.0~225.0 mm (normal temperature) Measuring range (steel) : 4.0~100.0 mm (high temperature) Operating temperature: -10~300°C

 3. Curved Surface Probe

 4. USB, RS-232C data cable with software

 5. Bluetooth data output with software



400mm Bluetooth Ultrasonic Wall Thickness Gauge For metal glass and Plastic 1400mm Bluetooth Ultrasonic Wall Thickness Gauge For metal glass and Plastic 2400mm Bluetooth Ultrasonic Wall Thickness Gauge For metal glass and Plastic 3400mm Bluetooth Ultrasonic Wall Thickness Gauge For metal glass and Plastic 4400mm Bluetooth Ultrasonic Wall Thickness Gauge For metal glass and Plastic 5400mm Bluetooth Ultrasonic Wall Thickness Gauge For metal glass and Plastic 6400mm Bluetooth Ultrasonic Wall Thickness Gauge For metal glass and Plastic 7

400mm Bluetooth Ultrasonic Wall Thickness Gauge For metal glass and Plastic 8
