x商品の詳細
| 低周波 | 5HZ - 10KHz | センサー | 1つの回転シアアクセラロメーター |
|---|---|---|---|
| 測定範囲 | 加速0.1 ~ 199.9m/s2 (単一のピーク) (5 または 10 ~ 1KHz; 1K ~ 10KHz) 速度0.1 ~ 199.9mm / s (RMS) (5 または 10 ~ 1KHz) | メートルのサイズ | 185mm × 68mm × 30mm |
| 製品名 | ポケット振動計 | ||
| ハイライト | portable vibration meter,digital vibration meter |
||
製品の説明

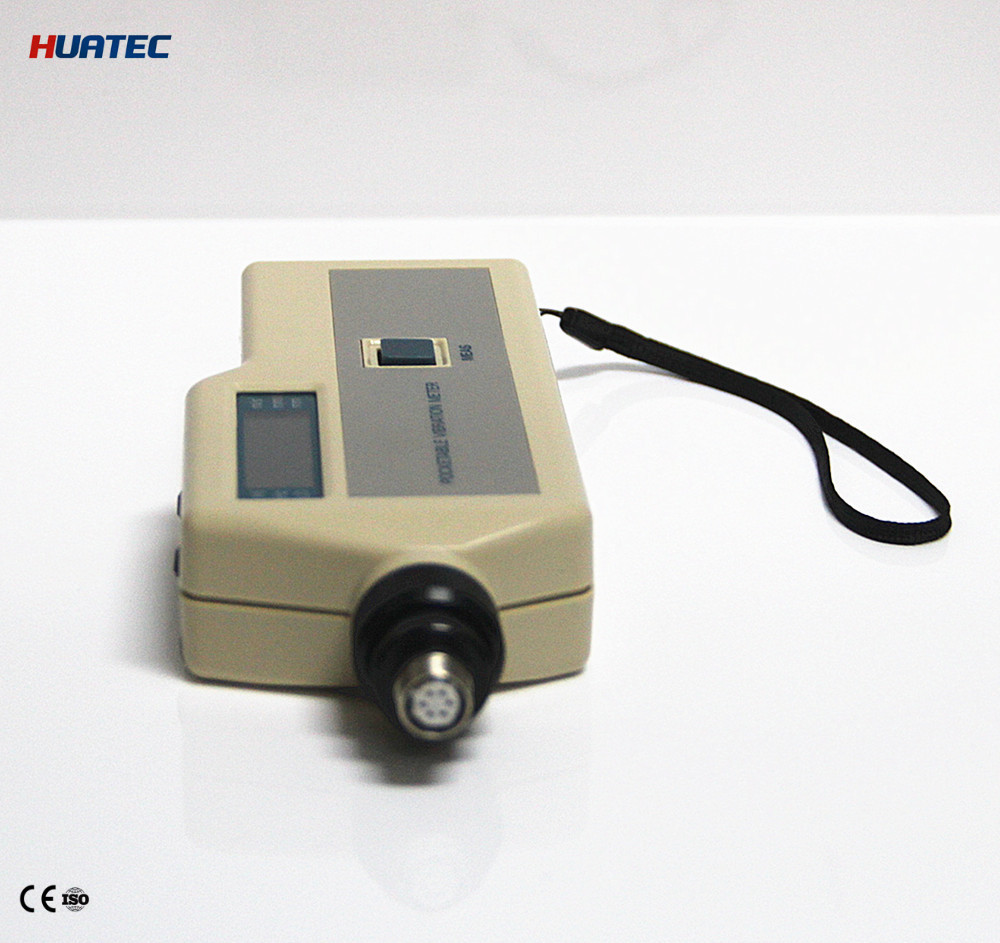

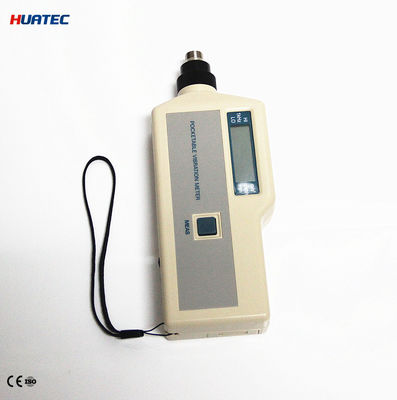

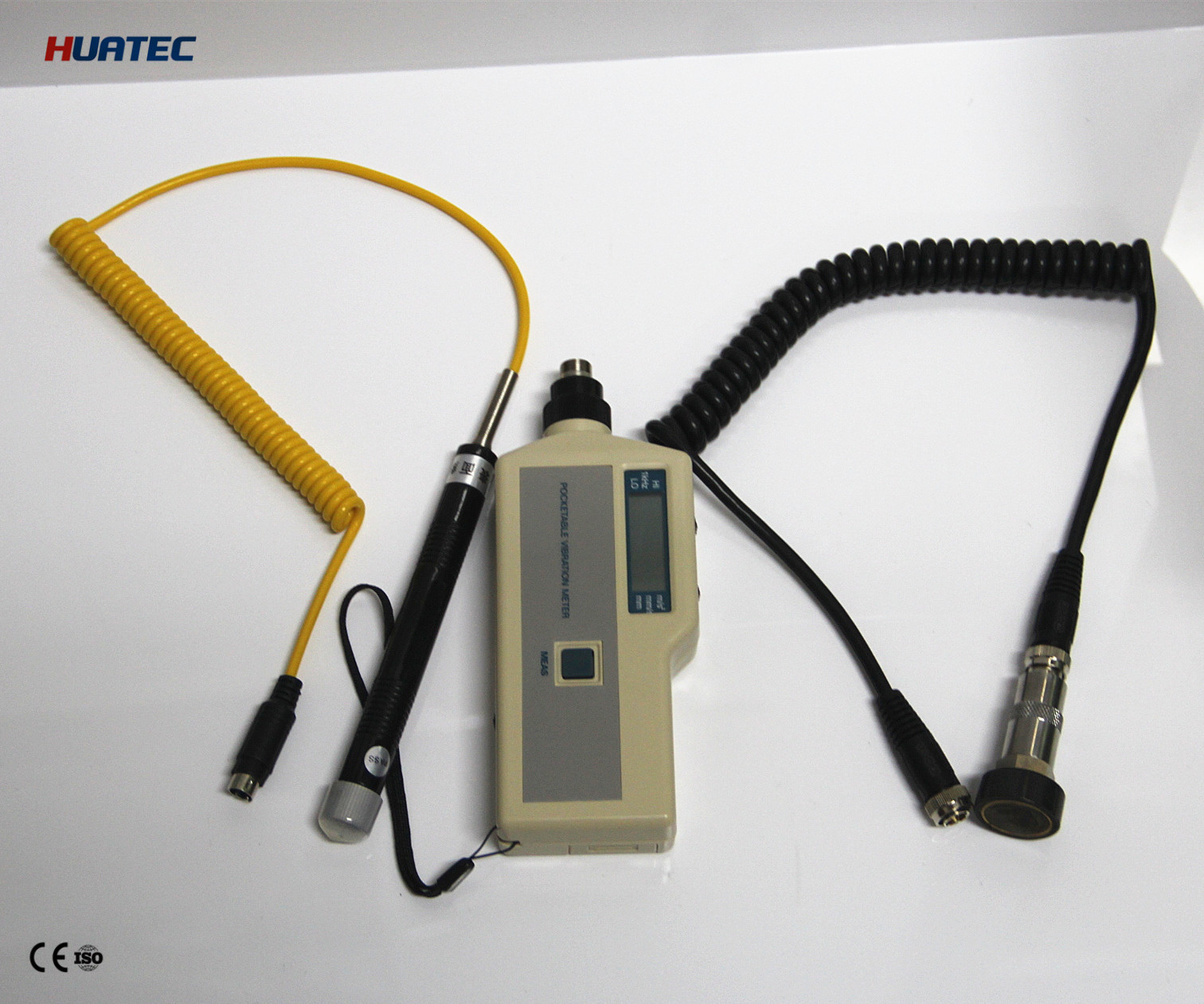

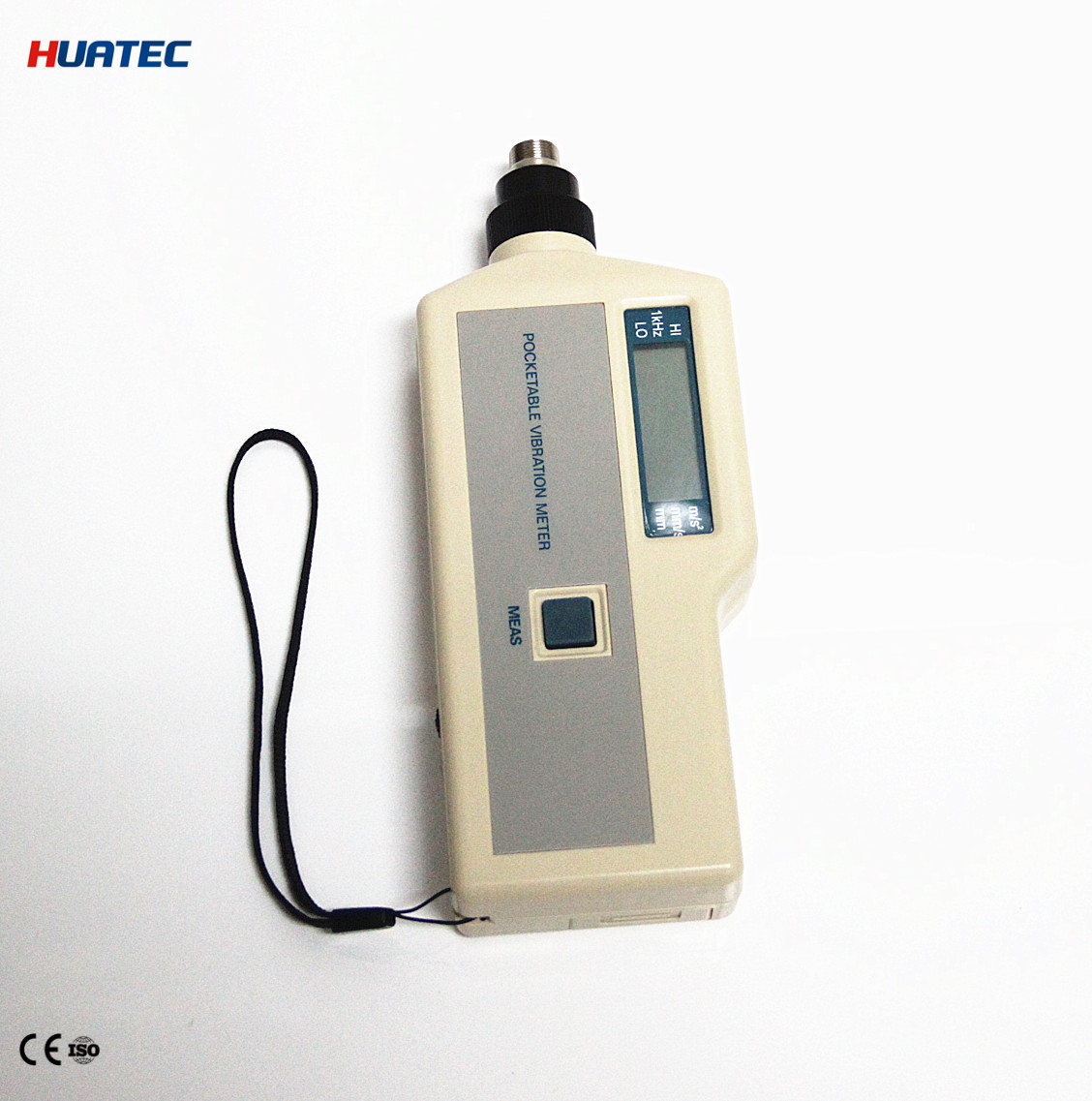

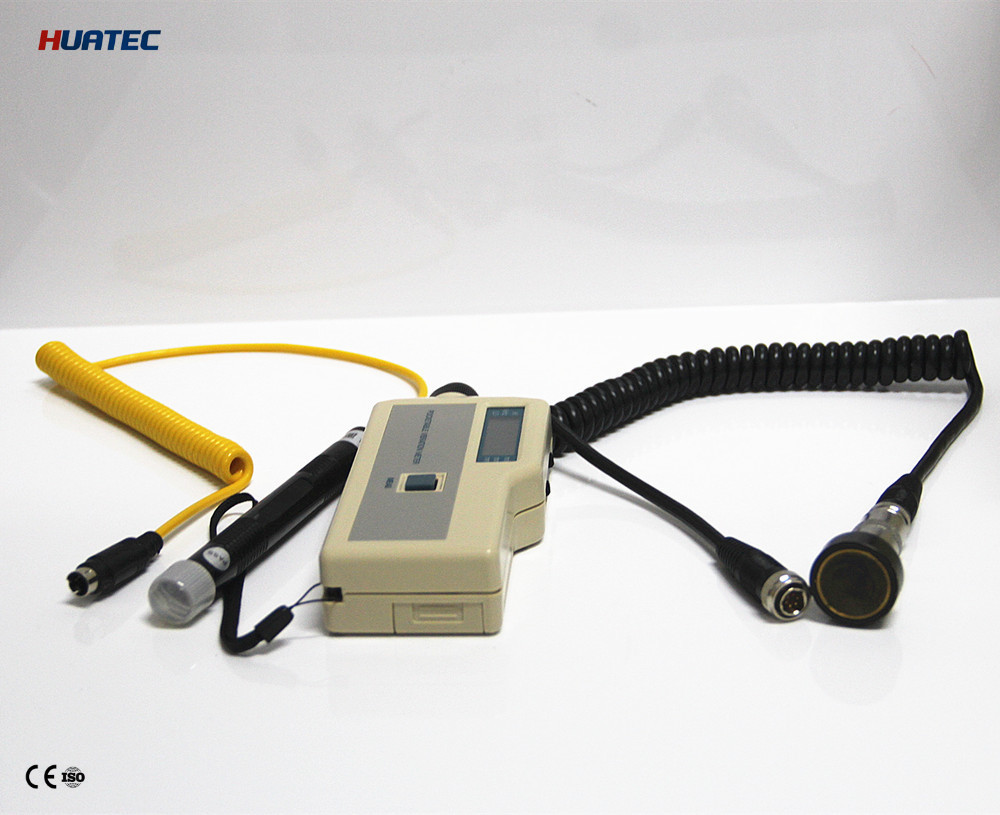

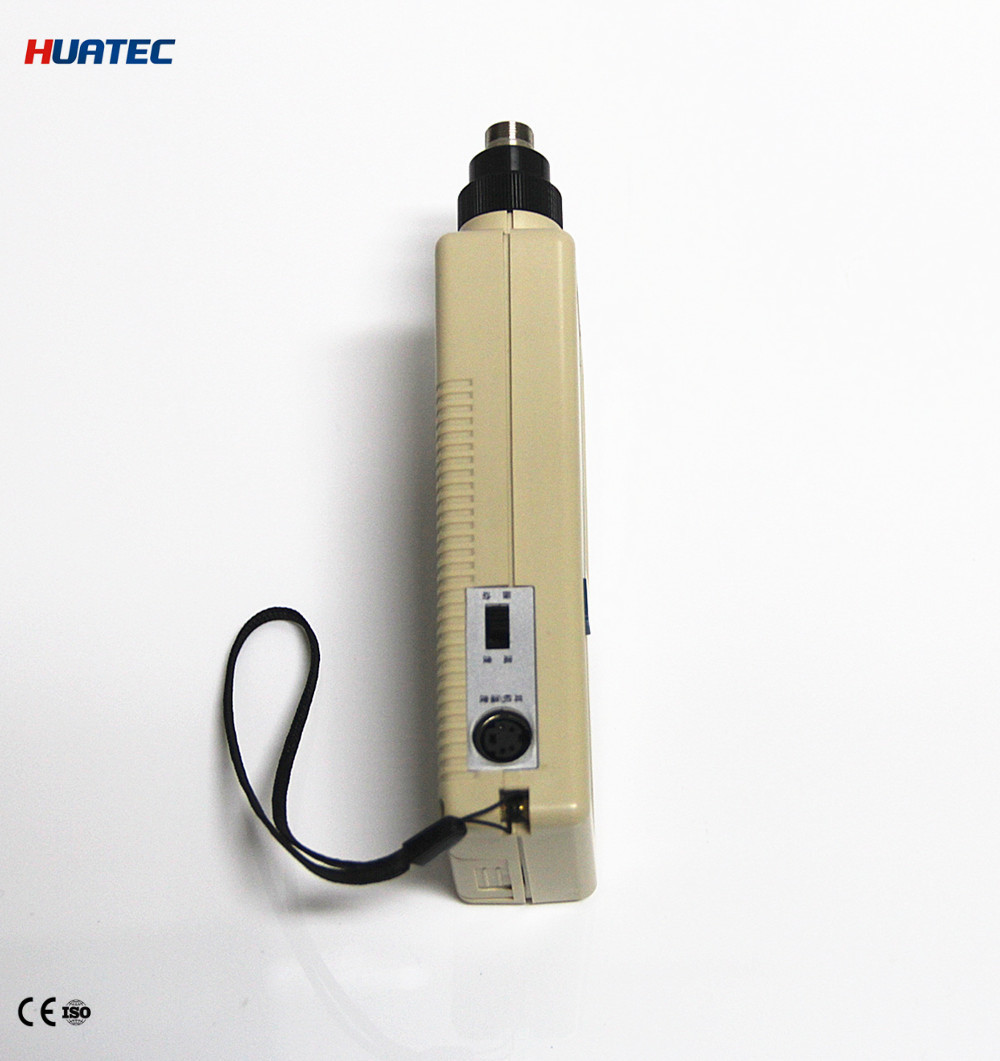

Digital Display 9V 5HZ - 10KHz Low Frequency Pocket Vibration Meter HG-6500BL
Description:
Vibrimeter, also known as seismograph vibration analyzer or pen, is designed by using the piezoelectric effect of quartz crystal and artificially polarized ceramic (PZT). It is widely used in machinery manufacturing, electric power, metallurgy vehicles and other fields.
In order to realize the modernization of equipment management, the factory should actively carry out advanced equipment management methods and adopt equipment maintenance technology based on equipment condition monitoring. Equipment condition monitoring and fault diagnosis are the premise of equipment preventive maintenance. Especially heavy industry enterprises, work continuity and high safety and reliability requirements, through the condition monitoring.
HG-6500BL Low frequency pocket vibration instrument, mainly used in machinery and equipment vibration displacement, velocity (intensity) and the acceleration, temperature parameters of the measurement instrument in the bearing housing using the measured data, the control of international standard ISO2372 , Or the use of enterprises, the standard machine, you can determine the equipment (fans, pumps, compressors, motors, etc.) in which the current state (well, pay attention or dangerous, etc.).
Principle of vibration measurement:
Vibrimeter, also known as seismograph vibration analyzer or pen, is designed by using the piezoelectric effect of quartz crystal and artificially polarized ceramic (PZT). When quartz crystals or artificially polarized ceramics are subjected to mechanical stress, their surfaces generate electric charges. Using piezoelectric acceleration sensor, the vibration signal is converted into electrical signal, through processing and analysis of the input signal, vibration acceleration, speed, displacement value is displayed, and the corresponding measurement value can be printed out by printer. The technical performance of the instrument is in line with the international standard ISO2954 and the Chinese national standard GB/T13824, for vibration intensity measurement instrument, sine excitation method vibration standard requirements. It is widely used in machinery manufacturing, electric power, metallurgy vehicles and other fields.
Function:
Vibrometer is used to measure the vibration of equipment, mainly refers to the vibration of rotating equipment and reciprocating equipment. Intelligent vibration meter can get spectrum, envelope and so on. A wireless vigrometer like this can store the measurement results indefinitely for pre-maintenance, and judge whether the equipment is in good condition by the value of these vibrations, as well as the vibration spectrum, vibration waveform and trend.
Specifications:
Sensors: one rotary shear accelerometer
Split charge amplifier built-in shear accelerometer
Range: Acceleration 0.1 ~ 199.9m/s2 (single peak) (5 or 10 ~ 1KHz; 1K ~ 10KHz)
Speed of 0.1 ~ 199.9mm / s (RMS) (5 or 10 ~ 1KHz)
Displacement of 0.001 ~ 1.999mm (peak) (5 or 10 ~ 1KHz)
Accuracy: 5% ± 2 vibration words
Display: LCD display three and a half
Maintain the characteristics: measurement value is automatically maintained, automatic shutdown delay
Signal Output: AC 2V peak (full scale and the load is greater than 10K ohms)
Power: 9V laminated battery 1 can be used continuously 25 hours
Size: 185mm × 68mm × 30mm
Weight: 200g
|
Model |
Low frequency and temperature |
Function |
Frequency range |
|
HG-6500AN |
Standard (I) |
Acceleration, Velocity, Displacement |
10Hz ~ 10KHz |
|
HG-6500AL |
Low frequency (I) |
Acceleration, Velocity, Displacement |
5Hz ~ 10KHz |
|
HG-6500ANC |
Vibration and temperature(I) |
Acceleration, Velocity, Displacement, Temperature |
10Hz ~ 10KHz |
|
HG-6500ALC |
Low frequency and temperature(I) |
Acceleration, Velocity, Displacement, Temperature |
5Hz ~ 10KHz |
|
HG-6500BN |
Standard |
Acceleration, Velocity, Displacement |
10Hz ~ 10KHz |
|
HG-6500BL |
Low frequency |
Acceleration, Velocity, Displacement |
5Hz ~ 10KHz |
|
HG-6500BNC |
Vibration and temperature |
Acceleration, Velocity, Displacement, Temperature |
10Hz ~ 10KHz |
|
HG-6500BLC |
Low frequency and temperature |
Acceleration, Velocity, Displacement, Temperature |
5Hz ~ 10KHz |
