x商品の詳細
| ハイライト | x ray inspection equipment,industrial x ray machine |
||
|---|---|---|---|
製品の説明

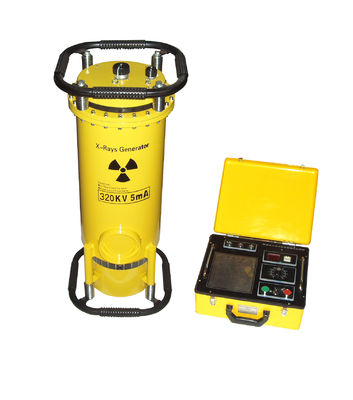

Directional radiation portable X-ray flaw detector XXQ-3205
(Glass x-ray tube)
XXQ series are suitable for the material directional of thin iron plate, aluminum, rubber and so on, may get very good picture quality and clarity.
Feature:
●Checking the software and hardware itself after start the machine
●Excellent anti-jamming performance, which can adapt for field operation without power supply, because of the motor supports
●Can adjust exposure parameters with keys ( easy operation.)
●Has the function of Delay time opening HV. Convenient for operator keep away from dangerous field
●Can adjust high voltage slowly for protecting X-ray generator
●Automatically controlling according to 1:1 working and rest operating way, the longest continuous exposure period is 5 minutes.
●Including complete protecting system: over KV, over KV, low mA, over mA, over temperature and optical-sound alarming
●Convenient for repairing and maintenance
●Much more Substance for structure designing, much more convenient for local operation
●Time can be changed for±0.3 according to the power supply net to make the exposure more precise
Specification:
|
|
Output voltage (Kv) |
Input (KW) |
Focus spot (mm) |
Beam angle |
Max penetration (mm) |
Weight (KG) |
Dimensions (mm) |
||
|
Generator |
Controller |
Generator |
Controller |
||||||
|
XXQ-3205 |
180-320 |
3.2 |
4.0X4.0 |
40°+5° |
53 |
42 |
18 |
335x335x835 |
350x290x160 |
Standard Delivery
|
Directional glass X-ray tube |
1 Pcs |
|
|
Generator |
1 Set |
|
|
High voltage joins cable |
1 Pcs |
25 Meters |
|
Controller |
1 Set |
|
|
Power cable |
1 Pcs |
10 Meters |
|
Grounding cable |
1 Pcs |
5 Meters |
|
Accessories |
1 Set |
|
|
(Including: alarm lamp, 1 Pcs; lead letter, 1 box; Film dark cassettes 5 pcs; intensifying screen 5 pcs; Wire penetrameter (IQI) 1 set; fuse1 pc) |
||
