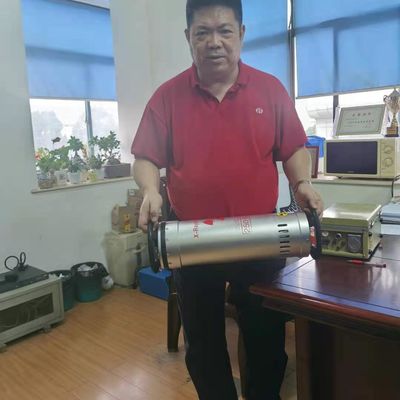

10.5kg Super Light 1.0mm Small Focus Ultra High Definition X Ray Welding Machine HMT-K2
Main usage:
The HUATEC Flaw detector products have been widely used for nondestructive testing in spaceflight industry, welding engineering industry, shipbuilding industry, boiler pipe industry, petrochemical engineering industry, aircraft manufacturing, maintenance industry, automotive industry, defense industries, etc.
Main technical parameters
(The industry is relatively small in size and light in weight)
Can be used with portable DR imaging board, suitable for working at high altitude, small space.
Product Features:
1. Miniaturization
2. Small focus
3. FBT adopts nanometer materials for stability, excellent design, long working life
4. Research and development of injection technology for FBT application;solved the string, non - impact resistance
5. Better penetration
6. Good product stability
7. Smaller focus, sharper image 1.0 small focus, ultra high definition
Parameters:
| Model | HMT-K2 |
| Input voltage kV | 130-250 |
| Power kW | 2.5 |
| Focus size | 1.0*1.0 |
| Radiation Angle | 40º±5 |
| Penetration mm | 40 |
| Weight KG | 10.5 |
| Size mm | φ150*510 |
| Focal distance from the ground mm | 100 |
Working Principle
This machine is composed of intelligent controller-ray generator, power cable and connecting cable.
1.The controller will consist of the following sections:
Front Panel: LED display, status and failure indicator, touch keyboards (see the introduction of control panel)
Side Panel: power cable socket and connecting cable socket, power switch,key switch, fuse socket, warning lamp and wire connecting terminal of door-machine interlock.
Internal Circuit: power circuit, rectifying circuit, filter circuit, inverter circuit, control circuit and other circuited.

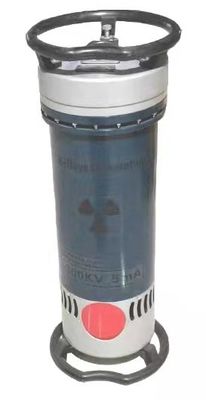

2.The x-ray generator will consist of the following sections:
X-ray tube, High voltage transformer, Temperature relay, Gas pressure gauge and Cooling fan etc.
3.The schematic diagram of the complete machine:
Standard Delivery
| Directional glass X-ray tube | 1 Pcs | |
| Generator | 1 Set | |
| High voltage joins cable | 1 Pcs | 25 Meters |
| Controller | 1 Set | |
| Power cable | 1 Pcs | 10 Meters |
| Grounding cable | 1 Pcs | 5 Meters |
| Accessories | 1 Set | |
| (Including: alarm lamp,1 Pcs; lead letter, 1 box; Film dark cassettes 5 pcs; intensifying screen 5 pcs; Wire penetrameter (IQI) 1 set; fuse1 pc) | ||
